How to backup UpCloud Kubernetes Service using Velero

How to backup UpCloud Kubernetes Service using Velero

Contributed by: Joni Jääskeläinen

This is an example on how to create an UpCloud Object Storage instance and a bucket with Terraform, and how to install and configure Velero for Kubernetes backup.

Prerequisites

In addition to a working UKS Cluster, you will need these tools to be installed:

To create the resources with Terraform and install Velero, you will need your API credentials and Kubeconfig file exported as environment variables.

export UPCLOUD_USERNAME=your_username
export UPCLOUD_PASSWORD=your_password
export KUBECONFIG=your_kubeconfig_file

You must also create a config.tfvars file with your own settings in the terraform folder. If you want, you can leave the access and secret keys as empty strings, they will be automatically generated:

objstorage_name = "velero"
zone            = "fi-hel2"
objstorage_size = 250
bucket_name     = "uks"
access_key      = ""
secret_key      = ""

Deploy UpCloud Object Storage

Velero needs an S3 compatible object storage to upload the backup files to. We will be using the UpCloud Object Storage service for this. In addition, Velero supports CSI based snapshots for Persistent Volume backups. These backup snapshots won’t be stored in the S3 bucket, they will remain in the storage system and therefore limits the restore to the same zone where the initial backup was taken. UpCloud MaxIOPS supports snapshots and our CSI driver fully supports the feature.

After you have cloned this repo, go to the backup folder. Initiate the project and install required Terraform providers.

make init

The object storage and a bucket can now be created with Terraform. We will create the necessary object storage components, and build a Velero install script with the configuration details. The steps should be done in less than 5 minutes.

First, create a plan and see all the resources Terraform is about to create:

make plan

Then apply the changes:

make apply

A file called terraform/velero-install.sh will be created. This file is needed in the next step to install Velero.

Deploy Velero

You can run the installation script terraform/velero-install.sh as-is, or you can run the individual commands yourself if you want to see more details on what the installation involves. First the script will install Velero components to the UpCloud Kubernetes Service cluster, and then it adds the necessary CSI plugin to Velero. Lastly, the volumesnapshotclass needs to be labeled with a Velero tag to make Velero aware of the CSI snapshot feature.

Kick off the installation script:

./terraform/velero-install.sh

Velero should be installed in a few seconds. You can check the installation logs in the Velero pod. You should see a successful connection to the S3 bucket:

kubectl logs -n velero deployment/velero

Now we are ready to deploy a test app on the cluster!

Deploy a Test App

Our test app is a simple nginx pod. We use a Persistent Volume for the nginx logs, so we can follow website loads and see if our backup and restore works. View the app yaml for more information. Velero is also capable of doing pre- and post-hooks for both backups and restores. The test app has an example on how to run scripts before and after a backup is run.

cat k8s/velero-demo-app.yaml

Deploy the app:

kubectl apply -f k8s/velero-demo-app.yaml

Once the load balancer service is up after a couple of minutes, load the default nginx welcome page:

curl -i $(kubectl get services -n velero-demo lb-nginx -o jsonpath={.status.loadBalancer.ingress[0].hostname})

Verify that you can see the webpage loads in nginx logs. The logs are stored on a Persistent Volume:

kubectl exec -n velero-demo deployment/nginx -it -- cat /var/log/nginx/access.log

Before we create a backup, we need to change the Reclaim Policy to demonstrate the loss of a persistent volume. The default Reclaim Policy for Persistent Volumes in UKS is to Retain the Persistent Volume after a Persistent Volume Claim has been deleted. Let’s make sure our restore really works, and remove the Persistent Volume along with the PVC. We can change the Reclaim Policy to Delete on an individual Persistent Volume:

kubectl patch pv $(kubectl get pvc nginx-logs -n velero-demo -o jsonpath='{.spec.volumeName}') -p '{"spec":{"persistentVolumeReclaimPolicy":"Delete"}}'

Now we are ready to create a backup! Note the time stamps on the nginx logs, so you can verify the backup and restore worked as expected. We are using a label to select the test app resources, but Velero can also backup using namespaces. Use the velero describe command to monitor the backup process.

velero backup create velerotest1 --selector app=velero-app
velero describe backups velerotest1

Let’s reload the nginx welcome page a few times to get more data. Remember, we created the backup point-in-time before these log messages, so they should not be visible after restore.

curl -i $(kubectl get services -n velero-demo lb-nginx -o jsonpath={.status.loadBalancer.ingress[0].hostname})
kubectl exec -n velero-demo deployment/nginx -it -- cat /var/log/nginx/access.log

Since we ran pre- and post-hooks, there should be two text files, prehook.txt and posthook.txt, in the log folder as well:

kubectl exec -n velero-demo deployment/nginx -it -- ls -la /var/log/nginx/

We have data in the logs, and our backup has completed with pre- and post-hooks executed. Time to get rid of our app!

kubectl delete deployments.apps -n velero-demo nginx
kubectl delete pvc -n velero-demo nginx-logs

The app is now gone, so let’s do a restore.

velero restore create --from-backup velerotest1

The restore should be done in 10 minutes. Note that the PVC restore can take some time since we are recovering from a snapshot. Verify that you can still access the nginx welcome page:

curl -i $(kubectl get services -n velero-demo lb-nginx -o jsonpath={.status.loadBalancer.ingress[0].hostname})

Lastly, let’s see what log entries we have left:

kubectl exec -n velero-demo deployment/nginx -it -- cat /var/log/nginx/access.log

You should have the original logs created before backup, and the latest logs from the page load after restore!

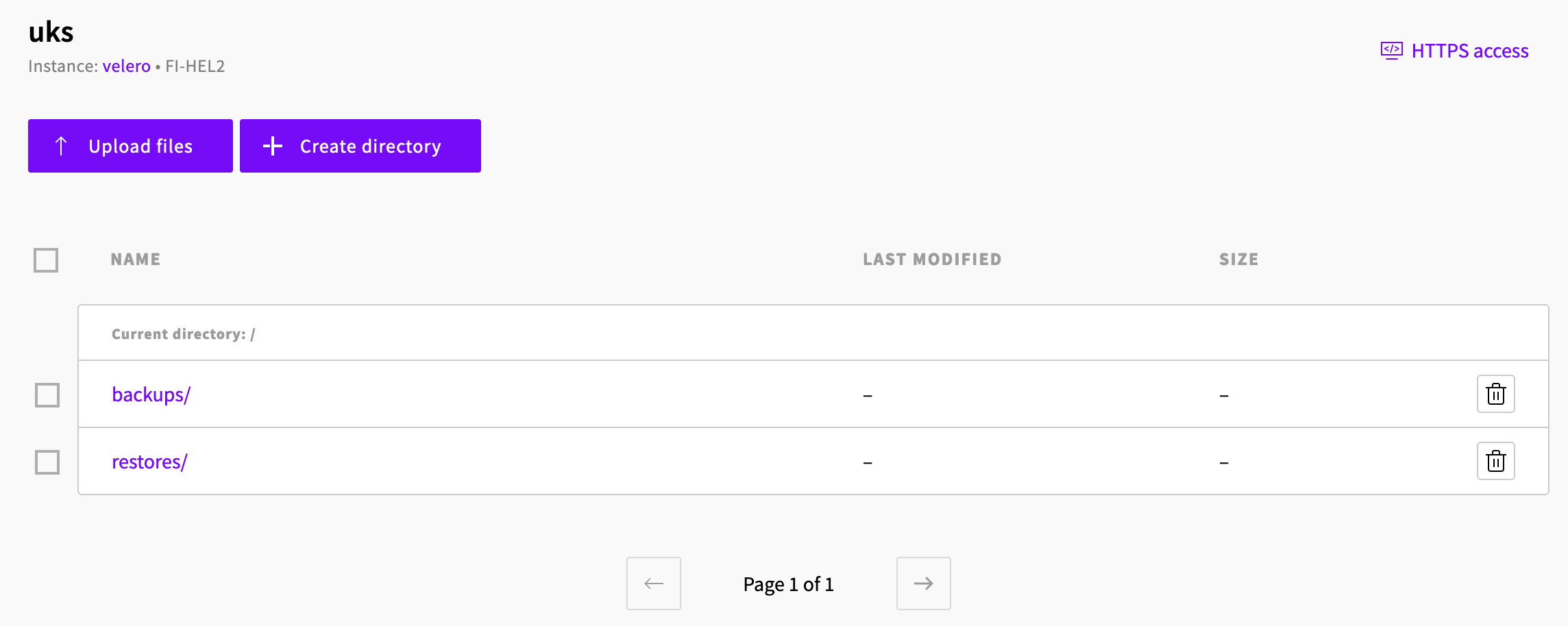

You can also view all the backup and restore files directly in the S3 Bucket. The PVC snapshots are not stored in the bucket, they are in the same storage system as the original Persistent Volume:

  • Go to UpCloud, login and go to Object Storage
  • Click on velero Object Storage and select the uks bucket
  • Feel free to poke around the file system and see the backup and restore files
Velero Bucket

Cleanup

Again, you have to patch the Persistent Volume to get rid of both the PVC and PV on deletion. If you forget this step, just delete the extra storage device in UpCloud after everything else is deleted.

kubectl patch pv $(kubectl get pvc nginx-logs -n velero-demo -o jsonpath='{.spec.volumeName}') -p '{"spec":{"persistentVolumeReclaimPolicy":"Delete"}}'

Let’s remove our demo app:

kubectl delete -f k8s/velero-demo-app.yaml

Before getting rid of the Object Storage, it’s a good idea to clean up the Velero backups. If you don’t, the snapshots will remain in UpCloud. You can of course delete those manually.

velero backup delete velerotest1

Then, run make to destroy the created object storage in the backup folder :

make destroy

Note that the velero install is still in the UKS cluster. If you want to remove it, just get rid of the velero namespace:

kubectl delete ns velero
