Supabase on Kubernetes: A Scalable Open-Source Firebase Alternative

Why Deploy Supabase on Kubernetes?

Supabase is a popular Backend as a Service (BaaS) solution. It describes itself as an open-source alternative to Firebase.

In recent years, its out-of-the-box features, such as authentication, database storage, file storage, and real-time APIs, paired with its FOSS licensing model, have made it a very attractive solution for Web App developers and Mobile App developers seeking to get their projects started quickly and easily.

However, self-hosting Supabase will require the deployment of several underlying infrastructure components, which can be time-consuming and prone to error.

When App Developers consider the question of Supabase vs Firebase, one key consideration is whether the setup can scale reliably as your project grows. An effective approach to making Supabase scalable is to deploy Supabase on Kubernetes, which provides built-in support for scaling, high availability, and automated recovery.

One popular way to deploy Supabase on Kubernetes is to use Helm charts. However, this method requires prior knowledge of Helm. This guide shows how to deploy Supabase on UpCloud’s Managed Kubernetes Service (UKS) and Managed Object Storage using a ready-to-run script, which abstracts away the complexities of Kubernetes, Helm, Object Storage and other tools, wires it all together and gets you up and running within a few minutes.

The idea is to deliver all the convenience of Supabase on top of the flexibility, scalability and self-healing powers of Kubernetes, but without having to know much about Kubernetes.

What is this good for?

This setup is great for:

• Web and Mobile App Development: Full-featured backend (auth, DB, storage, APIs) to accelerate development and focus on the client-side experience —while running on infra that will be able to affordably scale later.

• Granular Security: Leveraging Row-Level Security (RLS) in PostgreSQL.

• Real-time Applications: Utilizing Supabase's Realtime engine for instant data synchronization with the database, essential for collaborative features or live updates.

What You'll Get

This script sets up a Supabase environment on UpCloud Managed Kubernetes which includes:

• Kubernetes Cluster: A small UKS (UpCloud Kubernetes Service) cluster to run Supabase in, which you can later scale as your project and demand grows.
• PostgreSQL Database: A Postgres instance backed by Kubernetes Persistent Volume Claims (PVCs) to ensure data durability.
• Supabase Studio: A dashboard to manage your database schema, authentication settings, and file storage buckets.
• Kong API Gateway: Kong is a cloud-native API Gateway used to handle routing and security of your Supabase services.
• Real-time Engine and REST APIs: Enables real-time subscription to database changes and simple CRUD operations.
• File Storage: Integrated with UpCloud's S3-compatible Managed Object Storage, configurable via environment variables.
• Authentication Service: Secure user management with email/password sign-in, social logins, and JWT-based sessions, fully integrated out of the box.

Requirements

Ensure you have the following prerequisites ready:

• An UpCloud account with API access.
• Tools:
  • upctl: The UpCloud CLI, which you'll have to preconfigure your UpCloud credentials.
  • git: The Git CLI, which we'll use to get the script we'll use to automate the deployment.
  • helm: The Helm CLI, which will be used by the script in order to deploy Supabase.
  • kubectl: The Kubernetes CLI, which will be used by the script to communicate with the new Kubernetes cluster on which we'll run Supabase.
  • jq: The JQ CLI, which will be used by the script to parse outputs from one command in order to pass them over to the next one and piece the whole thing together.

Get the Code

In order to get you up and running as quickly and easily as possible, we provide a script that deploys all the necessary infrastructure, an Managed Object Storage service, a small Kubernetes cluster running Postgres and the Supabase components, and a Managed Load Balancer. If you wish to have a look at the script —though this is not really necessary— the repository is hosted in our public Github org here

git clone https://github.com/UpCloudLtd/paasup.git
cd paasup/supabase

Configure your Deployment

Before deploying, you'll need to first set some environment variables defined in the deploy_supabase.env file. These will allow you to define your Supabase username/password, your Postgres password, connect to the s3-compatible Object Storage of your choice or set up your SMTP server.

Example content:

# Enable/Disable and configure supabase services
# Studio service configuration
DASHBOARD_USERNAME=supabase
DASHBOARD_PASSWORD=""                               # If not set, the script will generate one password
# Database service configuration
POSTGRES_PASSWORD=""                                # If not set, the script will generate one password
# S3 service and configuration
ENABLE_S3=true                                      # Controls if s3 servcice is deployed
S3_KEY_ID=AccessKey                                 # Access key for the user with access to this upcloud object storage
S3_ACCESS_KEY=SecretKey                             # Secret key for the user with access to this upcloud object storage
S3_BUCKET=supabase-bucket                           # Must be a bucket that already exists in your objet storage
S3_ENDPOINT=https://0vg6c.upcloudobjects.com        # Your object storage url ( S3 endpoint)
S3_REGION=europe-1                                  # Region where your upcloud object storage is
# SMTP Notifications
ENABLE_SMTP=false
SMTP_HOST=smtp.mailgun.org
SMTP_PORT=587
SMTP_USER=[email protected]
SMTP_PASS=secretpassword
SMTP_SENDER_NAME="MyApp <[email protected]>"

Adjust these variables to tailor your Supabase deployment exactly to your storage, email, and security preferences.

Deploy Supabase

To deploy, use the provided script deploy_supabase.sh:

./deploy_supabase.sh <location> <app_name>

For example:

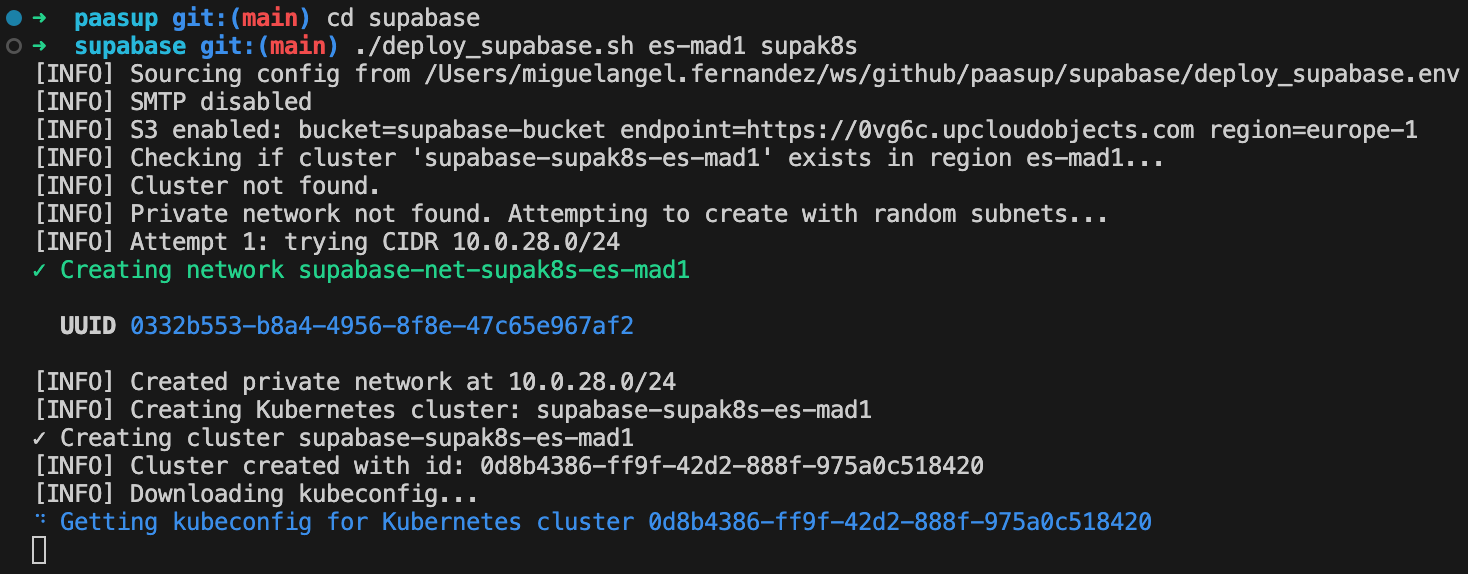

./deploy_supabase.sh es-mad1 supak8s

This single command will:

1. Create a new private network and Kubernetes cluster on UpCloud Managed Kubernetes Service (UKS).
   • Note: The default cluster will have a single 2xCPU-4GB worker node, so you can get started for very little cost, but retain the ability to scale your Supabase deployment as your project and demand grows.

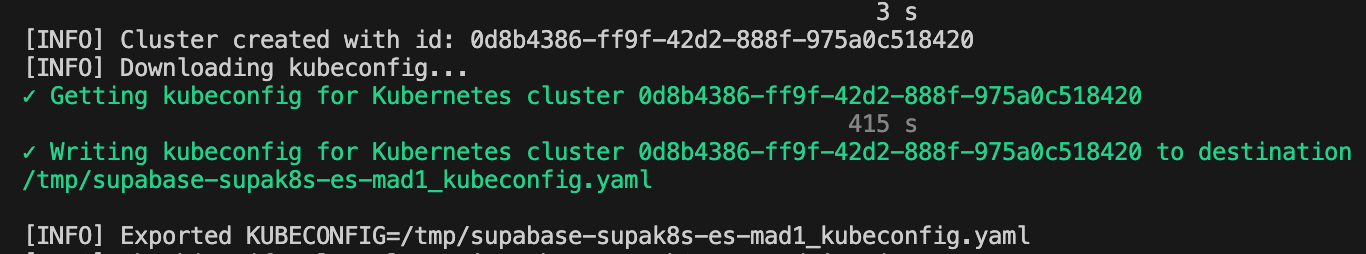

2. Download the Kubernetes kubeconfig.yaml file, so it can make deployments to your cluster on your behalf.

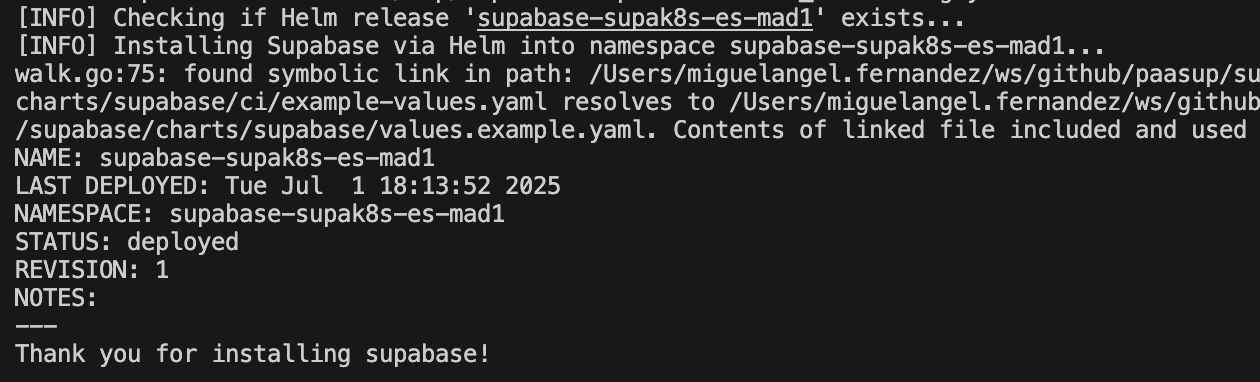

3. Deploy Supabase using Helm.
   • Note: This will also deploy Postgres.

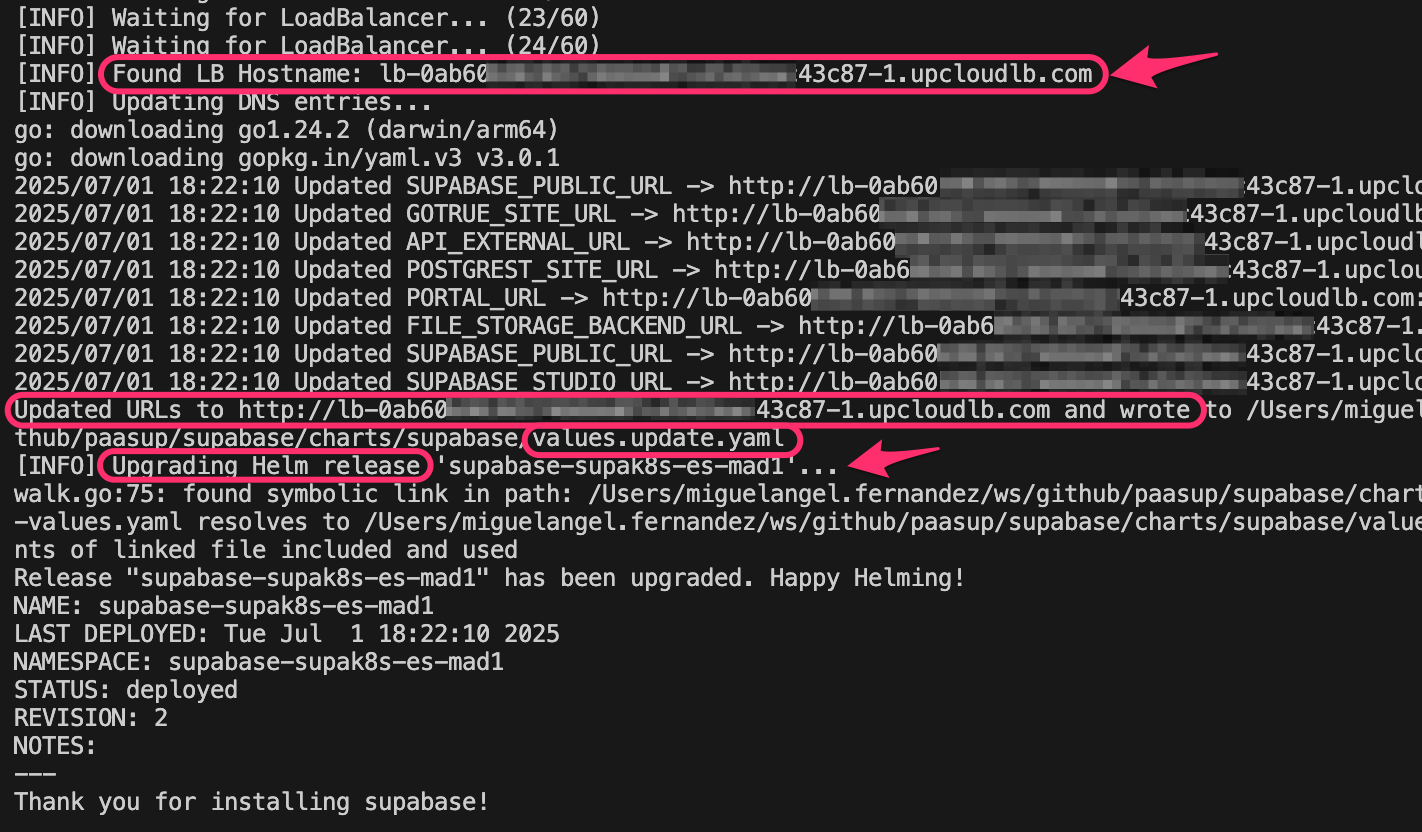

4. Create an UpCloud Managed Load Balancer to expose the Supabase Dashboard.

5. Apply the configuration values set by you in the deploy_supabase.env file.
   • Note: This is what will wire Supabase file storage to your UpCloud Managed Object Storage service.

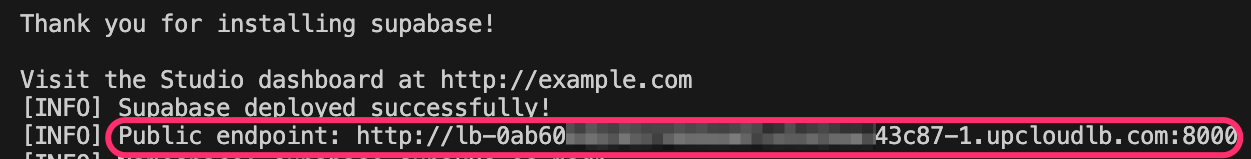

Once the script is done, you will see all your connection details in the output.

Supabase deployed successfully!
Public endpoint: http://lb-0ab60...43c87-1.upcloudlb.com:8000
Namespace: supabase-app1-es-mad1
ANON_KEY: eyJhbGciOi...RMOOrZLYcr0
SERVICE_ROLE_KEY: eyJhbGciOi...2iFZqud24
POSTGRES_PASSWORD: supabase
POOLER_TENANT_ID: tenant-7b141b
DASHBOARD_USERNAME: supabase
DASHBOARD_PASSWORD: ********
S3 ENABLED: true
S3_BUCKET: supabase-bucket
S3_ENDPOINT: https://******.upcloudobjects.com
S3_REGION: europe-1
SMTP ENABLED: false
SMTP_HOST: not set
SMTP_PORT: not set
SMTP_USER: not set
SMTP_SENDER_NAME: not set

Connect to your Supabase Deployment

Open a web brower and navigate to the URL printed in the script's output as you Public endpoint. It will roughly look like this:

http://lb-0ab60...43c87-1.upcloudlb.com:8000

Copy and paste this URL into your web browser.

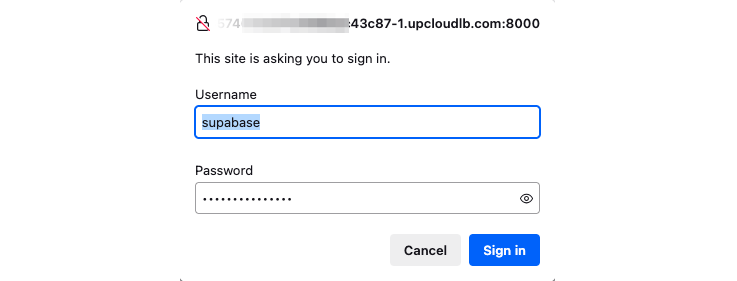

You will be prompted for your username and password. Type in the credentials from the script's output.

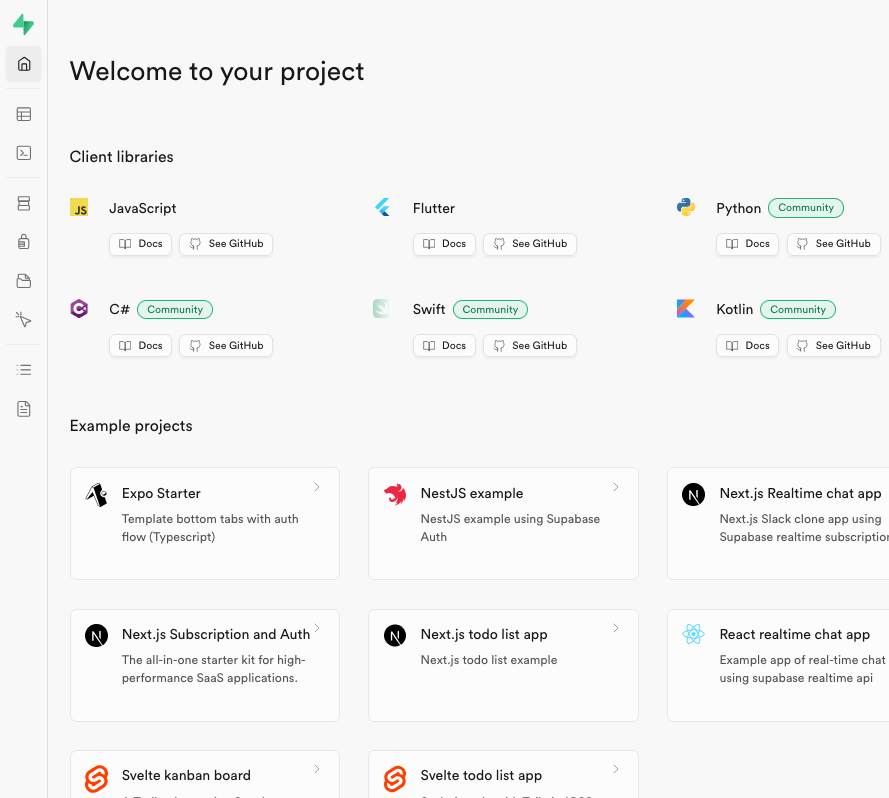

Once inside, you should see the Supabase Dashboard.

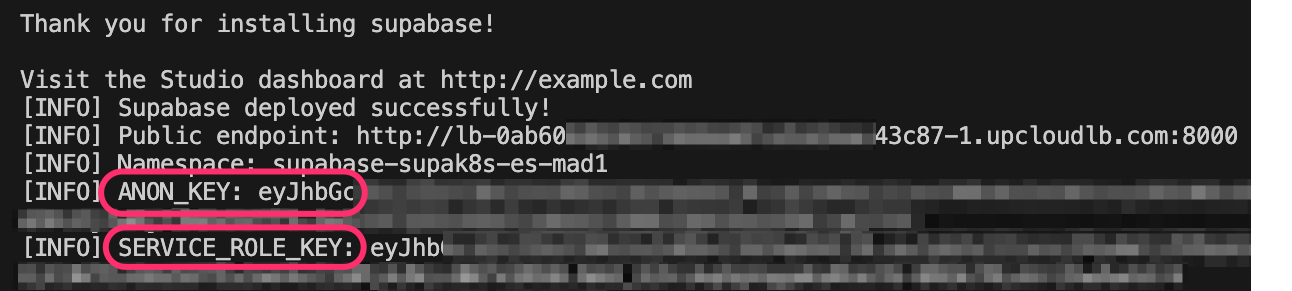

API Access: In order to connect your frontend apps to your new deployment's endpoints, use the ANON_KEY and SERVICE_ROLE_KEY, also from the script's output.

Congrats 🎉 You now have everything you need in order to start developing and testing your backend database and endpoints, and to start integrating your web or mobile apps right away.

Advanced Customization

Since our script leverages Helm under the hood, for additional customization you can simply create a file called values.custom.yaml inside the /supabase directory. This allows you to override specific Helm chart settings beyond what's provided in deploy_supabase.env.

For example, to change the s3 supabase base folder and the access key:

storage:
  environment:
    TENANT_ID:  "supabase1"
secret:
  s3:
    accessKey: "xyz"

If present, the script automatically applies this configuration during deployment.

Please note that this type of customization will require that you have a basic understanding of the Helm charts used to deploy Supabase.

Make Changes to your Supabase Deployment

Once deployed, if you wish to change anything about your existing deployment, the script provided makes this straightforward with the use of the --upgrade flag.

./deploy_supabase.sh --upgrade <location> <app_name>

Under the hood, the script will leverage a helm upgrade command and use any values you place in a file values.custom.yaml.

Summary

This script means to significantly simplify the deployment of Supabase on UpCloud, using both UpCloud Managed Kubernetes (UKS) and Managed Object Storage to provide a robust, persistent, and customizable environment, that will be able to grow with your project.

We aim to iterate over this guide (and soon others like it), so if you have any feedback or would like to contribute, please raise an issue or MR over our new Stacks repository
