Example NAT Gateway setups

Simple NAT gateway

This setup connects a set of servers in SDN Private Networks to services on the Internet.

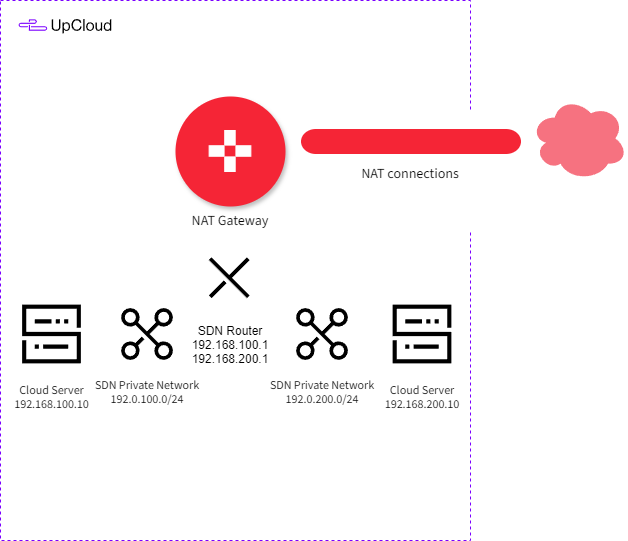

NAT gateway setup
Example of a NAT gateway with multiple connected SDN Private Networks

Gateway with NAT and VPN

A single gateway instance can act both as a NAT and VPN gateway, combining remote network connectivity and Internet access.

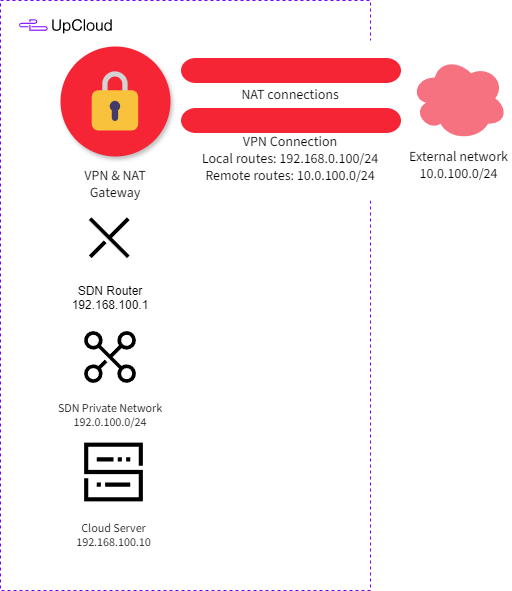

Combined NAT & VPN gateway
Example of a combined NAT & VPN gateway setup
