Example VPN Gateway setups

Single VPN tunnel

In this example setup, an IPsec site-to-site VPN tunnel connects servers in an SDN Private Network to a remote network.

Single tunnel setup

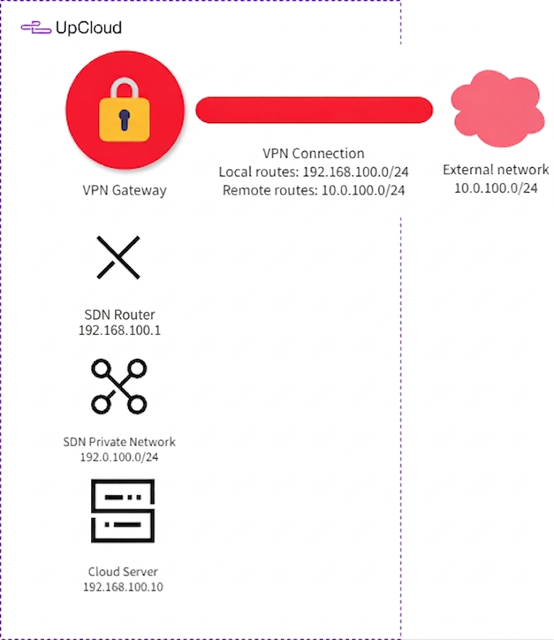

Example of a single VPN tunnel setup

VPN tunnels to multiple locations

VPN Gateways support multiple tunnels to different locations. Since local routes must be unique, each VPN tunnel requires a separate SDN Private Network. Servers can join one or multiple of these SDN Private Networks, based on their access requirements.

Multi-network setup

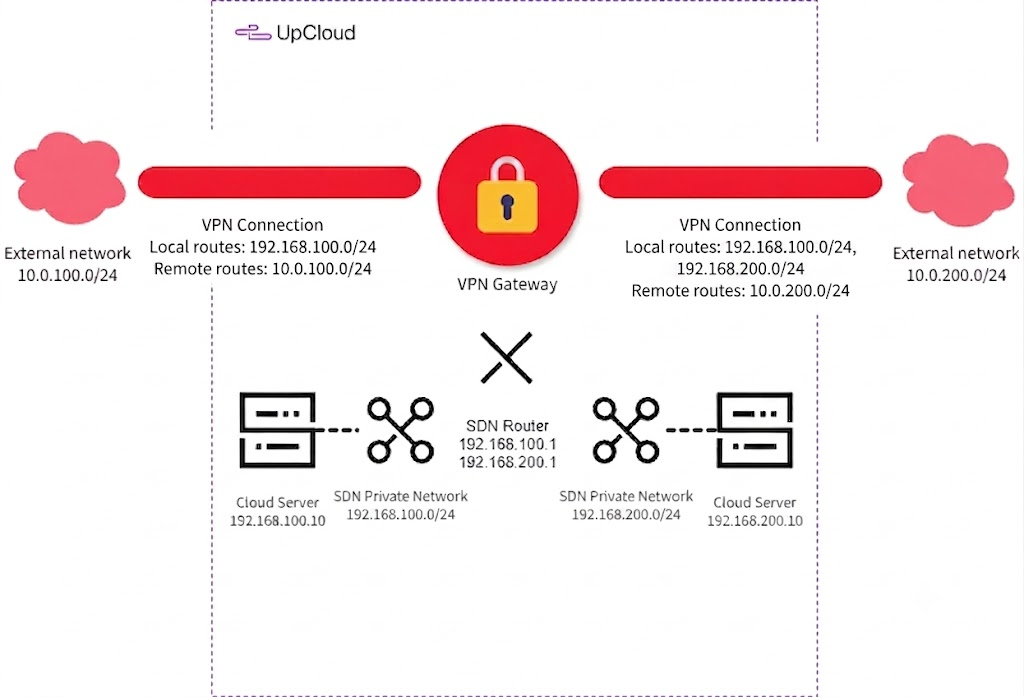

Example of connecting multiple SDN Private Networks with multiple remote networks

Gateway with NAT and VPN

A single gateway instance can act both as a NAT and VPN gateway, combining remote network connectivity and Internet access.

Combined NAT & VPN gateway

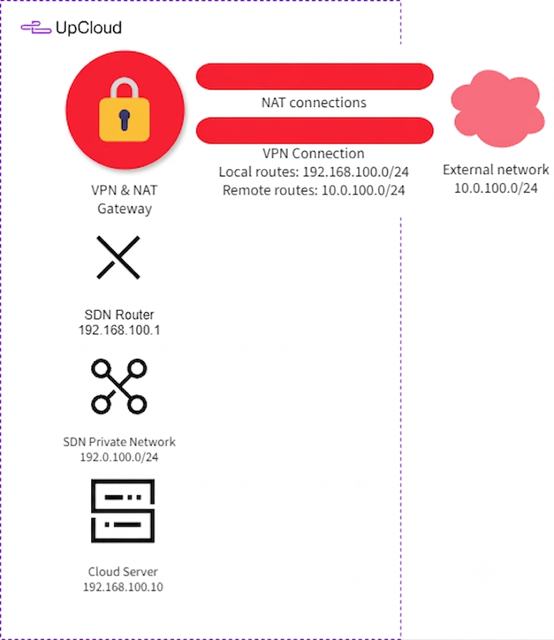

Example of a combined NAT & VPN gateway setup
